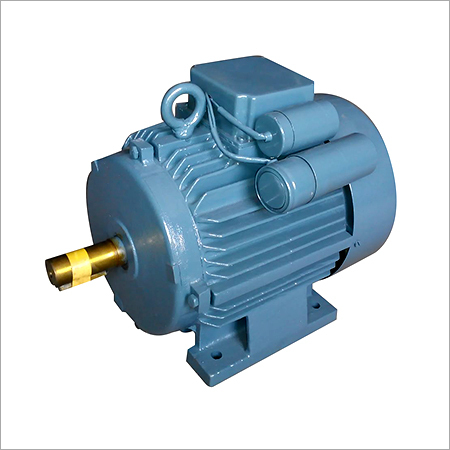

Portable Electric Motors

Get a Price/Quote

MOQ : 5 Pieces

Portable Electric Motors Specification

Rated Frequency
50 Hz

Sealed Type
Sealed Bearings

Standard
IS: 325 / IEC 60034

Motor Type
Induction Motor

Cooling Method
Air Cooling

Pressure
Standard Atmospheric

Features
Portable, Robust construction, Maintenance free operation

Starting Type
DOL / Star-Delta

Efficacy
High Efficiency

Current Type
AC

Rated Voltage
220V / 415V

Ambient Temperature
-10C to +50C

Voltage
220 V / 415 V

Bearing Type
Ball Bearing

Poles Number
2/4

Noise Level
Low

Horse Power
0.5 HP to 3 HP

Power Rating
0.37 kW - 2.2 kW

Torque
Consistent Torque Output

Product Type
Portable Electric Motors

Output Power
0.5 HP to 3 HP

Frequency (MHz)
50 Hz

Protect Feature
Totally Enclosed Fan Cooled (TEFC)

Phase
Single Phase / Three Phase

Speed
1440 RPM

Power
375 W to 2200 W

Color
Blue / Grey

Dimension (L*W*H)
375 mm x 200 mm x 250 mm (Approx)

Weight
12 kg (Avg)

Shaft Diameter
19 mm (Approx)

Mounting Type
Foot Mounted

IP Rating
ip44

Efficiency Class
IE1/IE2/IE3 Available

Insulation Class
Class B / F

Thermal Protection
Thermally Protected

Vibration
Low Vibration Levels

Construction Material
Cast Iron / Aluminium Body

Overload Capacity
Withstands up to 20% Overload

Service Factor
1.15

Waveform Distortion
Minimal

Duty Cycle
S1 Continuous

Application
Pumps, Compressors, Blowers, Machine Tools

Lubrication
Pre-lubricated Bearings

Paint Type
High Quality Anti-Corrosive Paint

Portable Electric Motors Trade Information

Minimum Order Quantity
5 Pieces

FOB Port
ahemdabad

Supply Ability
400 Pieces Pieces Per Day

Delivery Time
1 Week

Packaging Details
Wooden Box

Main Domestic Market
All India

Certifications
iso certified

About Portable Electric Motors

Find the ultimate solution for dependable motion with our top-ranking Portable Electric Motors, manufactured and supplied in India. Highlighted by commanding features such as Class B/F insulation, high service factor, and minimal waveform distortion, these motors offer the lowest price in their segment without compromising quality. Customizable options are available with robust cast iron or aluminium bodies, high-efficiency IE1/IE2/IE3 class ratings, and protection features including TEFC and thermal safeguards. Suitable for pumps, compressors, blowers, and machine tools, each unit ensures maintenance-free operation and enduring reliability.

Highlighted Uses and Directional Guidance

These portable electric motors serve general and specific industrial purposes. Direction of use includes installation in pumps, compressors, blowers, and machine tools where consistent torque output is vital. Application media involves transferring mechanical energy efficiently within manufacturing or construction settings. The motors are built for continuous operation and integrate easily for on-site or stationary applications, making them adaptable solutions for varied environments.

Certifications, Order Valuation, and Supply Status

Our motors conform to IS: 325 and IEC 60034 standards, ensuring peace of mind during valuation and procurement. Order processing is streamlined for efficiency, with stock ready for dispatch and flexible payment terms available to accommodate diverse business needs. Supply ability is robustour logistics network guarantees prompt fulfillment of bulk orders and timely delivery, facilitating swift installation and seamless workflow integration for every customer.

FAQs of Portable Electric Motors:

Q: How do I install a portable electric motor for a pump or compressor?

A: Installation involves aligning the motor shaft with the equipment, securing it using the foot mounting holes, and ensuring electrical connections match the specified voltage and phase. Refer to the manufacturers manual for step-by-step guidelines.

Q: What applications are best suited for these portable electric motors?

A: These motors excel in pumps, compressors, blowers, and machine tools, providing consistent torque and robust performance across varied industrial and workshop settings.

Q: When can I expect delivery after placing an order?

A: Our stock is ready and order processing begins promptly upon receipt. Delivery schedules depend on location and quantity, but most orders are dispatched within a few working days.

Q: Where are your portable electric motors manufactured and shipped from?

A: All motors are manufactured and supplied from India, following industry standards for quality and reliability.

Q: What certifications ensure product quality and operational safety?

A: Each motor complies with IS: 325 and IEC 60034 standards, assuring high safety, efficiency, and durability.

Q: How does the thermal protection feature safeguard the motor during operation?

A: Thermal protection identifies excessive heat and prevents overheating by automatically shutting down or restricting operation, preserving motor life and system stability.
