AC Motor

Name: AC Motor
Brand: WILSON INDUSTRIES
Price: 25000 INR
Availability: InStock

Price 25000 INR/ Piece

Get a Price/Quote

MOQ : 5 Pieces

AC Motor Specification

Poles Number
4

Ambient Temperature
-15C to +40C Celsius (oC)

Standard
IS 325, IEC 60034

Current Type
AC

Horse Power
2 HP

Rated Voltage
415 V Volt (V)

Noise Level
<70 dB db

Features
High efficiency, Low Maintenance, Robust Construction

Motor Type
Asynchronous AC Motor

Torque
9.95 Nm N-m

Bearing Type
Ball Bearing

Rated Frequency
50 Hz Hertz (HZ)

Cooling Method
IC411 (Self-cooled)

Sealed Type
Enclosed

Voltage
415 V Volt (v)

Power Rating
2 HP

Efficacy
IE2

Starting Type
Direct On Line

Product Type
AC Induction Motor

Output Power
2 HP Horsepower (HP)

Frequency (MHz)
50 Hz Hertz (HZ)

Protect Feature
Totally Enclosed

Phase
Three Phase

Speed
1440 RPM RPM

Power
1500 W Watt (w)

Color
Grey

Dimension (L*W*H)
As per model design Meter (m)

Weight
18 kg Kilograms (kg)

Shaft Diameter
28 mm Millimeter (mm)

Mounting Type
Foot Mounted

IP Rating
IP55

Duty Type
S1 (Continuous)

Service Factor
1.15

Relative Humidity
90%

Thermal Protection
Available as Optional

Application
Industrial Pumps, Fans, Blowers, Compressors, Conveyors

Frame Size
112M

Connection Type
Star/Delta

Insulation Class
Class F

AC Motor Trade Information

Minimum Order Quantity
5 Pieces

FOB Port
ahemdabad

Supply Ability
400 Pieces Per Day

Delivery Time
1 Week

Packaging Details
wooden boxes

Main Domestic Market
All India

Certifications
iso certified

About AC Motor

Phase	3
Brand	Wilson
Power	10 kW
Speed	14000 RPM
No Of Poles	2
Color	Blue
Surface Finishing	Color Coated
Country of Origin	Made in India

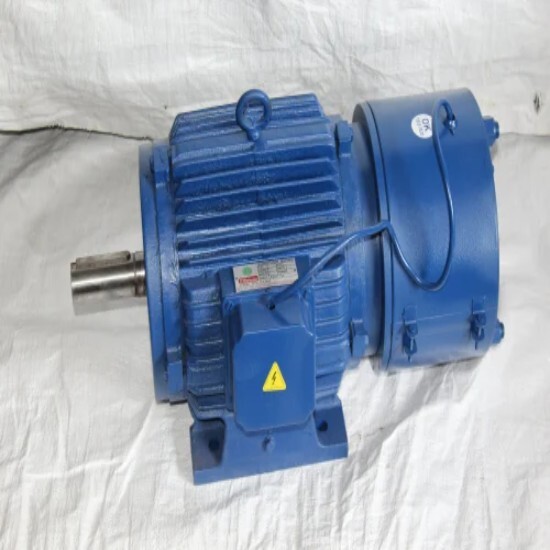

Brake Motor is a combination of an A.C. induction motor and an electromagnetic AC or DC brake. The electromagnetic brake is mounted on the non-driving end of the motor. DC brake motors are provided with a rectifier which provides the required DC voltage to the brake coil which in turn operates the brake

Available in variety of models and designs this product is widely used in different industries for various applications. AC Motor is known for its quality and capability of enduring heavy loads. Customers can avail the product in three phase feature and the product proves to be perfect component for many other end products. The sped delivered by the motor is 2900RPM 1400RPM 960RPM and 660RPM depending upon the nature of task and requirement of the activity. It works on different voltage units sch as 220/380V 380/660V 230/400V 400/690V 440V. The motor is completely water proof and the painted layer of the outer structure makes it rust proof. The durability of AC Motor comes from the constituents used in the making of it.

Product details

No Of Phase	Three Phase
Rated Power	20 HP
Brand	Wilson
Speed	1500 RPM
IP Rating	IP21
No Of Poles	2
Mounting Type	Foot Mount
Insulation Class	Type B
Usage/Application	Industrial
Material	Mild Steel
Country of Origin	Made in India
Surface Finishing	Color Coated

Engineered for Demanding Industrial Uses

Our 2 HP IE2 AC Motor is expertly crafted for heavy-duty industrial environments, ensuring seamless operation in systems such as pumps, fans, blowers, conveyors, and compressors. With robust construction and self-cooling (IC411) features, it performs optimally under continuous use, supported by a standard 415 V, 50 Hz power supply. The enclosed, IP55-rated design ensures durability in challenging conditions.

Reliability Combined with High Efficiency

Enjoy superior performance with our IE2 efficiency-rated AC Motor, built with a 112M frame and Class F insulation for added reliability. This motor maintains low noise levels (<70 dB) and operates smoothly at 1440 RPM, with an impressive torque of 9.95 Nm. Designed to minimize maintenance, it ensures operational continuity in demanding scenarios.

FAQs of AC Motor:

Q: How should the 2 HP AC Motor be used in industrial settings?

A: This motor is suitable for continuous operations in industrial pumps, fans, blowers, compressors, and conveyors. Its S1 duty type and robust construction allow for prolonged usage without interruption, making it reliable for heavy-duty environments.

Q: What are the benefits of the IE2 efficiency class featured in this motor?

A: IE2 efficiency ensures reduced energy consumption and lower operational costs. The motors optimized performance helps industries meet energy-saving goals while delivering consistent output for demanding applications.

Q: Where can this AC motor be installed, and what mounting type does it support?

A: Designed for foot mounting, this motor can be installed on any flat surface, making it adaptable to various industrial machine bases. Its totally enclosed, IP55-rated housing allows for placement even in dusty or humid environments.

Q: What process should be followed for starting and connecting the motor?

A: The motor supports both star/delta and direct on-line (DOL) starting methods. For safe operation, ensure proper wiring to a 415 V three-phase AC supply and verify secure grounding. Thermal protection can be added as an optional safety feature.

Q: When is it necessary to use the optional thermal protection with this motor?

A: Thermal protection is recommended when the motor will operate in environments with fluctuating temperatures or under variable load conditions, as it prevents overheating and extends motor life.

Q: What maintenance is required for this AC motor?

A: Routine inspection is minimal due to the motors robust construction and ball bearing system. Regular checks for dust accumulation, secure wiring, and bearing lubrication are recommended to sustain optimal performance.
