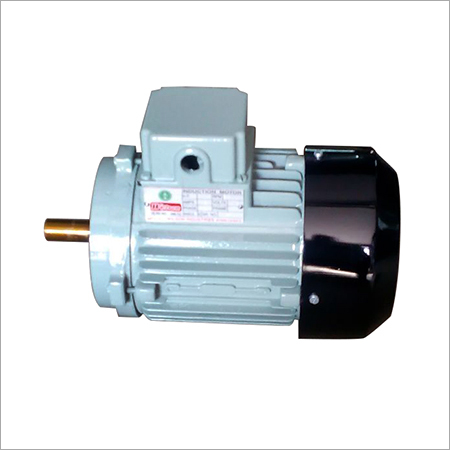

3 Phase Induction Motors

Name: 3 Phase Induction Motors
Brand: WILSON INDUSTRIES
Price: 3000.0 INR
Availability: InStock

Price 3000.0 INR/ Piece

Get a Price/Quote

MOQ : 5 Pieces

3 Phase Induction Motors Specification

Ambient Temperature
-20C to +50C

Bearing Type
Ball / Roller Bearing

Current Type
AC

Motor Type
Squirrel Cage Induction Motor

Cooling Method
Fan Cooled

Sealed Type
IP55

Horse Power
0.5 HP to 150 HP

Standard
ISI / IEC 60034 / IE2/IE3

Noise Level
75 dB

Rated Voltage
415 V

Pressure
Atmospheric

Starting Type
Direct On Line (DOL) / Star-Delta

Torque
High Starting Torque

Features
Long Life, Energy Efficient, Low Maintenance

Voltage
415 V AC

Power Rating
Up to 110 kW

Efficacy
IE2/IE3 High Efficiency

Rated Frequency
50 Hz

Poles Number
2 / 4 / 6

Product Type
Three Phase Induction Motor

Output Power
Up to 150 HP

Frequency (MHz)
50 Hz (not MHz)

Protect Feature
Totally Enclosed Fan Cooled (TEFC)

Phase
Three Phase

Speed
1440 RPM / 2880 RPM

Power
Up to 110 kW

Color
Industrial Blue / Grey

Dimension (L*W*H)
Varies by Model

Weight
20-250 kg

Shaft Diameter
Depends on Model

Mounting Type
Foot / Flange Mounting

IP Rating
IP55

Frame Size
80 to 315 mm

Enclosure
TEFC (Totally Enclosed Fan Cooled)

Thermal Protection
Optional

Application
Pumps, Compressors, Conveyors, Blowers, Industrial Machinery

Altitude
Up to 1000m above sea level

Service Factor
1.15

Vibration Level
As per IS:12075

Duty Cycle
S1 (Continuous) Duty

Insulation Class
Class F

Rotor Type
Aluminum Die Cast / Copper

Lubrication
Grease Packed, Sealed for Life

3 Phase Induction Motors Trade Information

Minimum Order Quantity
5 Pieces

FOB Port
ahemdabad

Supply Ability
500 Pieces Per Month

Delivery Time
1 Days

Packaging Details
wooden boxes

Main Domestic Market
All India

Certifications
iso certified

About 3 Phase Induction Motors

Are you looking for an efficient motor, which ensures finest performance for heavy loads If yes, Wilson Industries is the point of your contact. The company introduces one of its best product i.e. 3 Phase Induction Motors. The motor regulates using the three phase feature and has the altitude less than 1000 M. It has IP 55 protection and highly efficient in the temperatures like -20-40C. Relative humidity of the motor is accounted to be below 90% has cooling mode of IC11 and IC16. The structure of the motor is made using cast iron and aluminum. Output power of the 3 Phase Induction Motors varies between 0.75 kw to 250 kw.

Product details

No Of Phase	Three Phase
Rated Power	1 HP
Brand	Welson
Motor Type	Foot Mounted
Speed	1500 RPM
Warranty Period	1 Year
Voltage	415 V
Usage/Application	Industrial
Material	Mild Steel
Country of Origin	Made in India

Rugged Construction for Demanding Applications

Designed for excellence in industrial settings, these three-phase squirrel cage induction motors incorporate durable TEFC enclosures, high-grade protection (IP55), and are constructed to meet ISI and IEC 60034 standards. Their robust structure ensures minimal vibration and low noise, making them suitable for continuous operation in harsh environments.

High Efficiency and Versatile Performance

With IE2/IE3 energy efficiency ratings and high starting torque, these motors are perfect for a wide array of applications including pumps, compressors, conveyors, and blowers. Their wide power and frame size range, along with options for both foot and flange mounting, ensures versatility and seamless integration into various industrial setups.

FAQs of 3 Phase Induction Motors:

Q: How does the TEFC (Totally Enclosed Fan Cooled) enclosure benefit industrial operations?

A: The TEFC enclosure protects the motor from dust, moisture, and contaminants by sealing the internal components. An external fan ensures efficient cooling, making these motors highly durable and reliable for continuous S1 duty in industrial environments.

Q: What are the primary applications for these 3 Phase Induction Motors?

A: These motors are ideal for use in pumps, compressors, conveyors, blowers, and a variety of industrial machinery due to their robust construction, high starting torque, and energy-efficient performance.

Q: When should I choose a motor with an aluminum die-cast rotor versus a copper rotor?

A: Aluminum die-cast rotors are standard and cost-effective for general applications, while copper rotors offer better efficiency and performance for demanding or energy-sensitive operations, albeit at a higher cost.

Q: Where can these motors be installed, considering environmental conditions?

A: Designed for use at altitudes up to 1,000 meters and ambient temperatures ranging from -20C to +50C, these motors are suitable for a wide range of industrial sites under atmospheric pressure, providing flexible installation options.

Q: What process is recommended for starting these motors?

A: Depending on the application and motor size, you can start these motors using Direct On Line (DOL) or Star-Delta starting methods, ensuring optimal performance and protection against electrical and mechanical stress.

Q: How does the insulation class F and sealed-for-life lubrication contribute to the motors longevity?

A: Class F insulation allows for higher temperature tolerance, protecting windings against overheating, while sealed-for-life grease-packed bearings minimize maintenance needs and extend operational life by preventing contamination.
